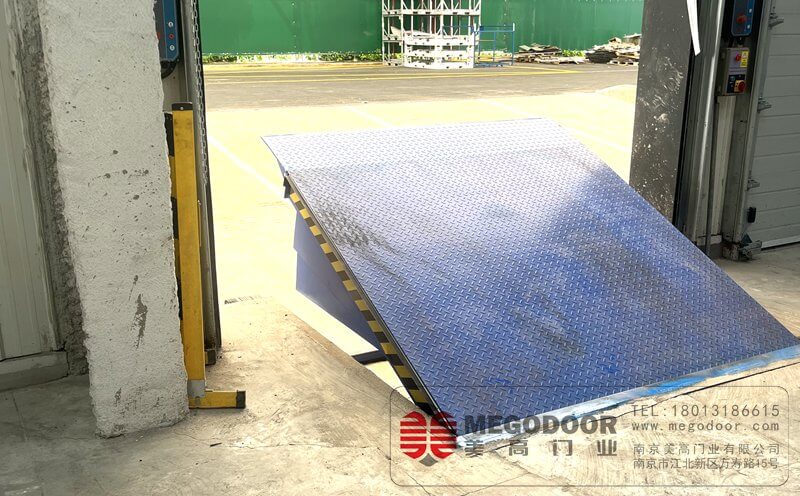

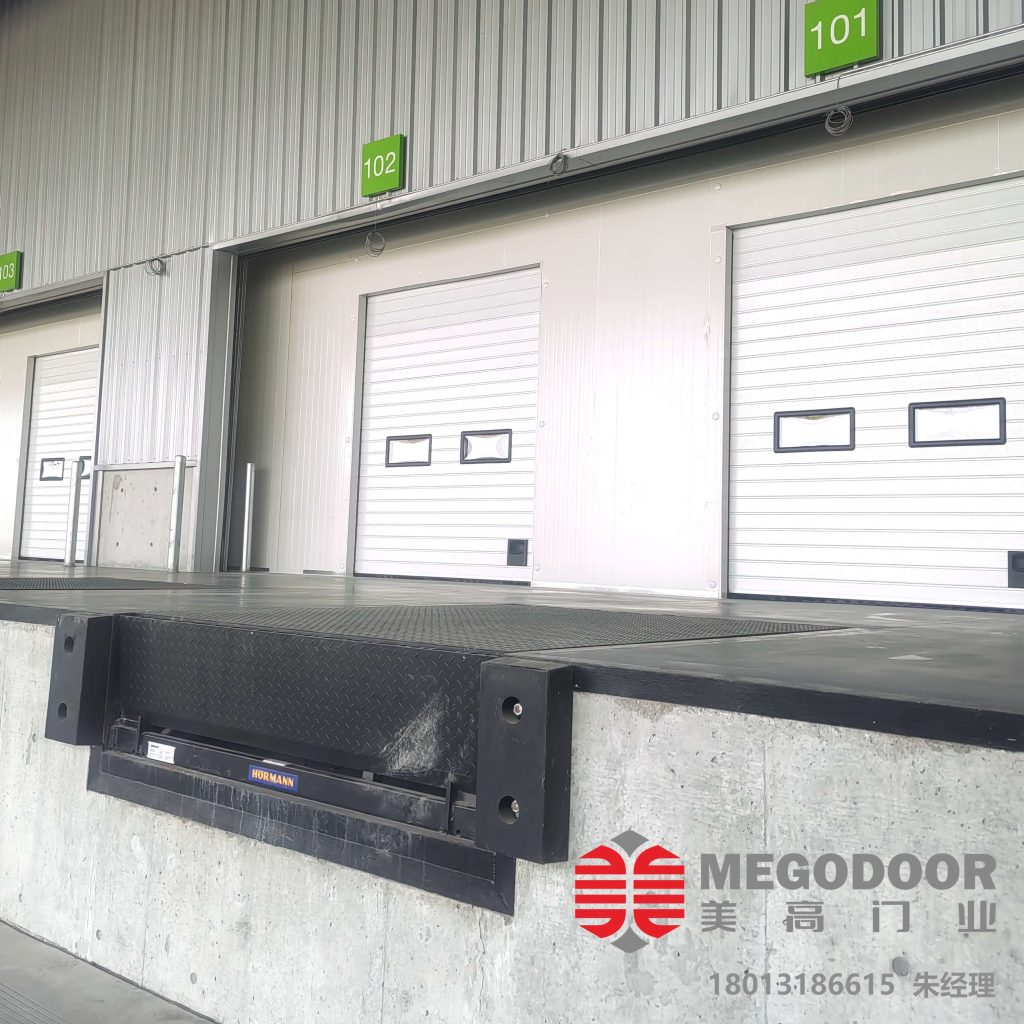

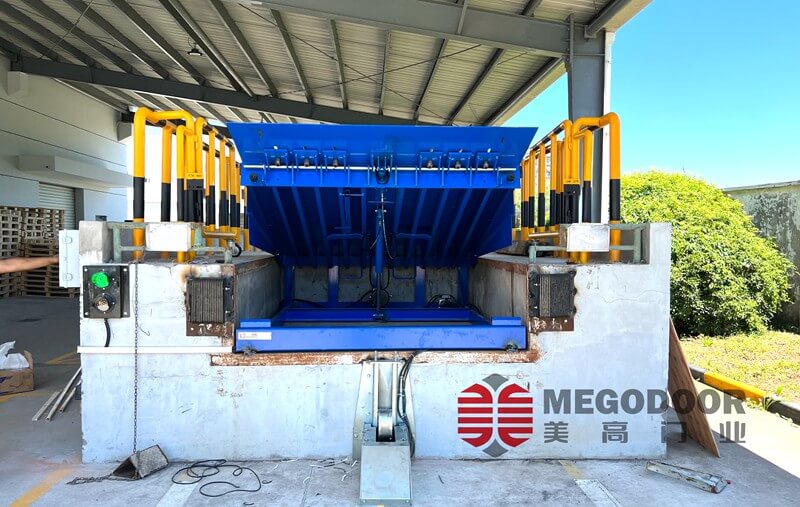

The Mego hydraulic dock leveler is installed on the side of the loading dock, flush with both the dock floor and side edges. The platform’s bridge plate can tilt up and down, allowing its outer end to be positioned higher or lower than the dock surface to align precisely with the truck bed. At the top of the bridge plate is a hinged lip that automatically extends and rests on the edge of the truck, ensuring a smooth and stable transition between the dock and the vehicle.
The surface of the loading platform undergoes a high-quality painting process using paint from the Korean brand Samho, which exceeds the quality of domestic brands. The paint comes with a 5–8 year warranty and features a three-coat system: zinc-rich epoxy primer, epoxy mica intermediate coat, and aliphatic polyurethane topcoat. Each coat is applied with an interval of over 24 hours, ensuring a total average dry film thickness of no less than 100 microns. Custom designs are available based on specific customer requirements, including dimensions and load capacity.
Technical Features of the Mego Hydraulic Dock Leveler
Materials and Manufacturing
- Anti-Slip Tread Plate: Manufactured to European standards, the platform uses anti-slip tread steel plates to enhance slip resistance. All structural steel components are finished with a durable baking paint process, offering excellent wear resistance.
- Four-Coat Painting System: The product features four layers of coating—two layers of primer, one intermediate coat, and one topcoat—with a total film thickness of no less than 0.08 mm. High-performance polyurethane topcoat and clear varnish are used for superior durability and appearance.
- CO₂ Shielded Arc Welding: All welds are performed using CO₂ shielded arc welding, ensuring clean, spatter-free joints that are both strong and aesthetically pleasing.
Safety and Maintenance
- Toe Guard and Safety Strut: The platform is equipped with a toe guard to prevent foot injuries and an internal safety strut to protect personnel during operation or maintenance.
- Open-Front Base Design: The base of the fixed hydraulic adjustment plate features an open-front design, making it easy to clean debris and maintain hygiene.
Application Advantages
- Efficient and Stable Operation: Easy to operate, highly stable, and low maintenance, the leveler is ideal for busy loading docks and compatible with various types of delivery vehicles.
Operating Procedure:
To use the platform, first raise the platform and lip together, then rotate and unfold the lip. Next, lower the platform to match the height of the truck bed. Once preparations are complete, loading and unloading can begin. After operations are finished, raise the platform, lower the lip, and return the platform to its original position, ensuring it remains flush with the dock floor.
Thanks to these advanced design features and technical specifications, the Meigao hydraulic dock leveler significantly improves loading efficiency, enhances operational safety, and ensures long-term durability—making it an ideal solution for modern logistics and warehouse facilities.
